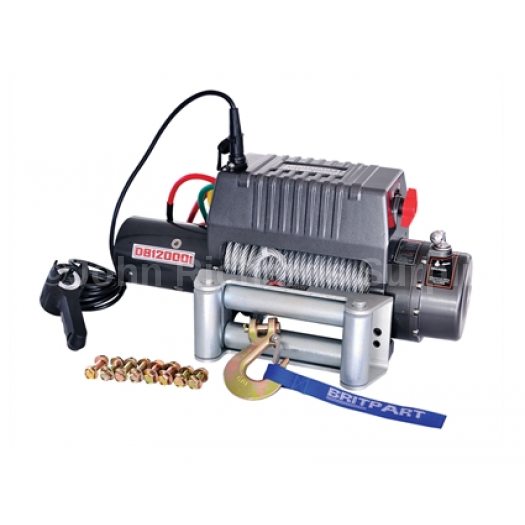

12,000lb 12 Volt Winch with Cable DB12000i POA

12,000lb 12 volt winch

Galvanised aircraft cable with break force 14,400lbs

 3.6Kw (4.8Hp) heavy-duty series wound DC motor
Weather and dustproof contactor controls for longer life and improved amperage draw
Planetary gear system for fast line speed
Automatic load-holding brake
Free spooling
Power in and power out
Low electric current
Hardened drum

Specifications:

Rated line pull - single line - 12,000lbs  /  5,443kgs
Gear reduction ratio - 294:1
Motor (series wound) - 4.8Hp  /  3.6Kw
Drum size (D x L) - 2.64 x 9"  /  67 x 228mm
Cable supplied - 3/8" x 100'  /  9.53mm x 30.5m - Galvanised aircraft cable with break force 14,400lbs
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77"  /  548 x 167 x 299mm
Net weight - 94.8lbs  /  43.0kgs
Mounting bolt pattern - 10 x 4.5"  /  254 x 114.3mm

Part Not Stocked P.O.A.

Please Ring For More Info & Price
